Turbo Underboost P0299 Ford Focus: Case Study
The Vehicle:

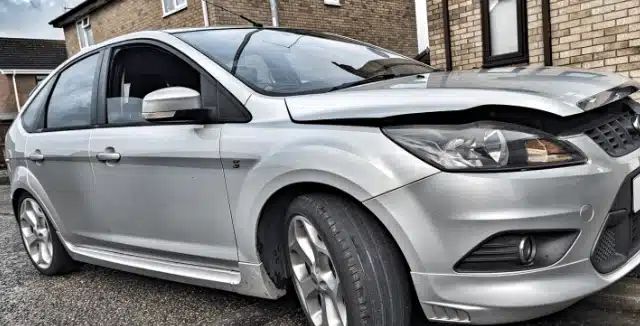

Ford Focus 1.6 diesel (2010 – 127,021 miles)
Reason for booking in…
‘Recently bought this and had a couple of limp mode issues ‘
Initial inspection found little of note with no excessive rattles, leaks, etc., but the tell tale bass rumble from the carbon buildup present.
Initial code read found:
P0134-23 Heated Oxygen Sensor Circuit – No activity detected
P0299-20 Turbo Underboost
P2196-26 Heated O2 sensor right upstream not switching correctly.
What Does a P0299 Turbo Underboost Fault Actually Mean?
P0299 turbo underboost Ford Focus faults like this one usually come down to one of a handful of causes: a boost leak somewhere in the intercooler pipework, a sticking wastegate, a worn turbo, or a faulty boost or MAP sensor feeding the ECU bad data. As RepairPal’s technical guide to the code explains, the engine control module compares the boost it has requested against what the sensors report back, and sets P0299 the moment the two fall out of step.
On this Focus, low coolant temperature was the standout factor. An engine running cooler than it should, because of a lazy or stuck-open thermostat, can throw off several of the readings the ECU relies on, on top of the power loss, limp mode and rough running that heavy carbon build-up causes on its own. Sorting the thermostat and clearing the carbon build-up were the sensible first steps before assuming the turbo itself needed replacing.
Live data all showed injector fuelling was acceptable, but coolant temperature values were only reaching 82°C at best and dropping to 69°C with the heating on – a new thermostat would be a great idea.
On with the clean and it soon smoothed out, quietened down and by the end it was quiet, smooth and responsive again. The owner can now take it for inspection to resolve the sensor issue,get a new thermostat and should the underboost issue persist then get a smoke test and turbo inspection.
Frequently Asked Questions About P0299 Turbo Underboost Ford Focus
What does a P0299 turbo underboost Ford Focus fault mean?
It means the engine control module expected more boost from the turbo than it was actually getting. On a 1.6 diesel Focus this can point to a boost leak, a sticking wastegate, a failing boost sensor, or a genuinely worn turbo, so it needs a proper live data diagnostic rather than a guess.
What causes turbo underboost on a Ford Focus 1.6 diesel?
A P0299 turbo underboost Ford Focus fault usually traces back to an intercooler or hose leak, a stuck or worn wastegate, a faulty MAP or boost pressure sensor, or heavy carbon build-up restricting airflow through the intake and turbo. Cooling system faults, like a stuck thermostat, can also throw off the readings the ECU relies on.
Can a failing thermostat cause a P0299 turbo underboost code?
Not directly, but a thermostat stuck open keeps the engine running cooler than it should, which can affect the readings and calculations the ECU uses for boost control. It’s a common finding alongside a genuine underboost fault and worth ruling out early.
Will an engine carbon clean fix a P0299 turbo underboost fault?
It depends on the cause. If carbon build-up around the turbo and intake is contributing to the underboost, a clean genuinely helps smooth things out. If the code persists afterwards, that points to a mechanical fault like a boost leak or worn turbo, and a smoke test or turbo inspection is the next step.
